Lateral Positioning Supports

Lateral Chest Supports EI:

 3 1/2” deep by 3” high

Lateral Chest Supports Size 1:

 4 1/2” deep by 4”

Lateral Chest Supports Size 2:

 4 1/2” deep by 6” high

Lateral Hip Supports EI:

 3 1/2” deep by 3” high

Lateral Hip Supports Size 1:

 4 1/2” deep by 5 1/2” high

Lateral Hip Supports Size 2:

 4 1/2” deep by 6 1/2” high

Sliding Adj. Tracks on Size 1:

Non-Contoured Chest pad or on Size 2 Standard Chest pad

Sliding Adj. Tracks on Hip pad:

 Sliding tracks supply maximum adj. for lateral pads for height and angle

Straps and Supports

Chest Belt:

 Black nylon velcro chest belt

Padded Chest Belt:

 Black nylon chest belt with pad

Body Support Vest:

 Quick release vest for upper body support

Soft Hip Support:

 Soft strap for hip support while in Prone

Single Patient Use Body Support Vest EI size only:

 Unlined light duty washable vest (denim only)

Single Patient Use Soft Hip Support EI size only:

 Unlined light duty washable prone hip support strap (denim only)

Head Support

Headrest:

 Height and depth adjustable padded headrest (includes 1/2 Square Tube Mount)

1/2” Square Tube Mount:

 Height and depth adjustable mount for any headrests that us a 1/2” horizontal mounting bar

i2i Flip Back Mount:

 Flip back mounting hardware for the i2i headrest (hardware only)

1/2” Square Tube Flip Back Mount:

 Flip back mount for any headrest using a 1/2” horizontal mounting bar

Chinrest:

 Height adjustable chin support

Lower Extremity Positioning

Independent Footplates:

 Individually height adjustable footplates with heel loops

Multi-Position Foot System:

 Individually adj. for planter-flexion, dorsi-flexion, rotation, height, with heel loops and foot straps

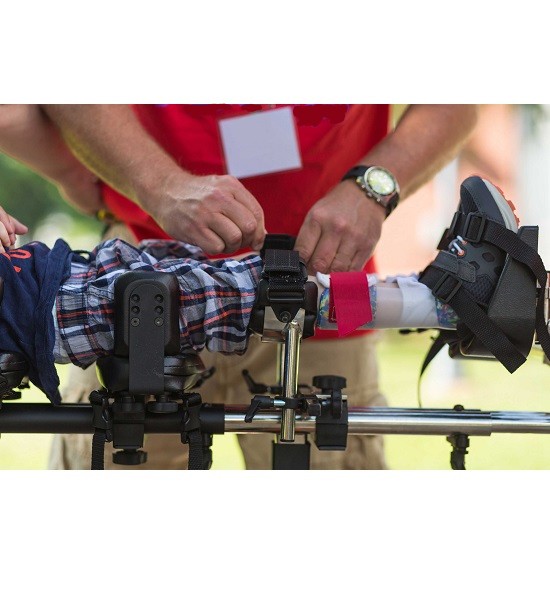

Size-Adjustable Knee Pads (pair):

 Allows knee pad width adjustment from 2 ½” – 4 ½” in width (not available in EI)

D-Ring Footstraps:

 1” Velcro D-Ring straps

Shoe Holders (pair):

 Formed ABS shoe holders with ankle and toe straps

 Sm (6″ long x 4 1/4″ wide), Med (8″ long x 4 7/8″ wide), Lrg (10 1/2” long x 6″ wide)

Height Adjustable Pommel:

 Assists in maintaining lower extremity position

Pommel W/ Rigid Hip Pad:

 Height adjustable pommel with height and depth adjustable rigid hip pad

ABduction Leg System:

 Includes rotating knees and fully adjustable shoe holders

ABduction Leg System with Pommel:

 Includes rotating knees, fully adj shoe holders and pommell with rigid pad

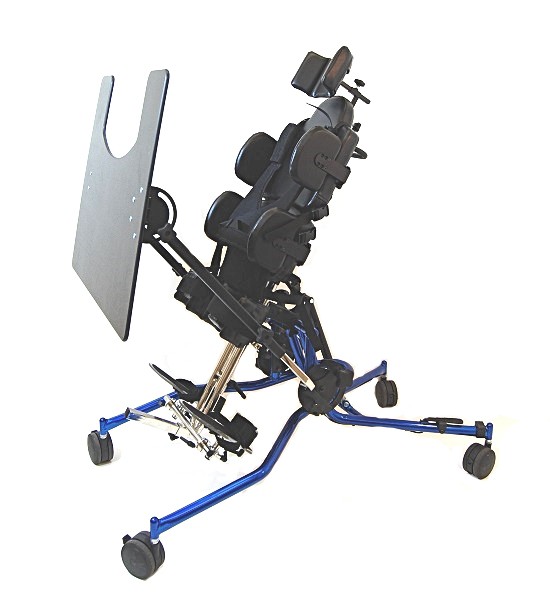

Tray Options

Opaque overlay, Clear overlay, Tray Easel, Tray Edging

Opaque Upper Extremity Positioning Tray:

 Multi-Positional tray with height, depth and angle adjustment

Clear Upper Extremity Positioning Tray:

 Multi-Positional tray with height, depth and angle adjustment

Activity Bowl:

 Tray cut-out with 7” bowl (clear tray only)

Padded Covers:

 Full size removable padded cover

 Wrap around non-removable elbow padding

Casters

Steel Caster Upgrade:

 Step-on step-off easy rolling steel casters that lock for both swivel and roll



Frame Colors:  Candy Blue, Candy Red, Neon Orange, Razzleberry, Candy Purple, Neon Pink, Shocker Green, Black, White
